0-8-4T Class 380 LNWR Profile and Models

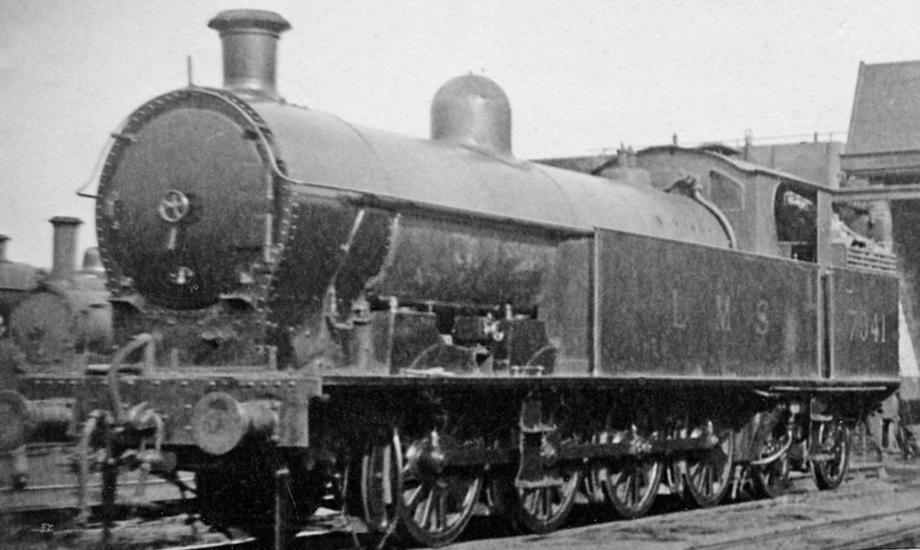

7941 at Swansea Paxton Street Locomotive Depot in September 1946. ©Ben Brooksbank
|
The LNWR 380 Class was a class of 0-8-4T steam tank locomotives designed by H. P. M. Beames. Although designed under the LNWR regime they appeared as LMS locomotives after the 1923 grouping. They were essentially an extended version of the 1185 Class 0-8-2T with a longer bunker, and were also related to the 0-8-0 freight engines. Their main area of work was to be in South Wales. The LMS gave them the power classification 5F. Withdrawal began in 1944. Fourteen survived into British Railways ownership in 1948 and were to be renumbered between 47930 and 47959 (i.e. the LMS numbers increased by 40000), but only two survived long enough to be renumbered 47931 and 47937, the last withdrawal occurring in 1951. |
|
|
Type of Locomotive |
Steam |
|
Builder |
Crewe Works |
|
Build Date |
1923 to 1924 |
|
Total Built |
30 |
|
Tractive Effort |
29,815 lbf |
|
Wheel Configuration |
0-8-4T |
|
Operated By |
London & North Western Railway London, Midland & Scottish Railway British Railways |
|
Main Duties |
Freight |
|
In Service Until |
1951 |
|
Surviving Examples |
0 |
Products awaiting categorisation
| Scale | Brand | Image | Construction Type | DCC Capability | Product Code | Product Title | Livery |
|---|---|---|---|---|---|---|---|
| OO Gauge (1:76 Scale) | Brassmasters |
|
Requires assembly | Not set |
L008 View |
LNWR Beames 0-8-4T Kit | Awaiting Categorisation |
| OO Gauge (1:76 Scale) | Dean Sidings |
|
RTR/RTUse/Pre-assembled | Not set |
DS406 View |
LNWR Beames 0-8-4T Resin Body Kit | Awaiting Categorisation |
